PullMaster Hydraulic Pulling Unit

High Capacity Pulling load

The PullMaster hydraulic pulling tool provides a high-capacity pulling load. It is designed to pull liners, packers, tubing, casing drill pipe, and other objects stuck in the wellbore on rigs with limited pulling or jarring capacity.

The tool has applications in the recovery of stuck liners and also during slot recovery/well redevelopment applications, where a specific TD for whipstock setting is required and the casing cannot be retrieved using conventional fishing techniques due to settled annular solids or partial cement.

Operation

The PullMaster is composed of stackable pistons that converts the hydraulics pressure into pull load.

After the BHA is run downhole and the spear is engaged to the stuck casing the PullMaster Anchor and Pulling system is activated to provide up to 1.2 Mlbf to recover stuck casing. The tool can be reset and activated multiple times as required.

Time Reducing Pulling Capability

Additional pumps activating the hydraulic pulling section are not required.

The PullMaster hydraulic pulling tool is designed to pull liners, packers, tubing, casing, drill pipe, and other objects stuck in the wellbore on rigs with limited pulling or jarring capacity. The tool is also used in slot recovery and well redevelopment applications in which a specific TD for whipstock setting or pulling casing below a casing shoe is required and when the casing cannot be retrieved using conventional fishing techniques due to settled solids or partial cement.

Document Downloads
TitleLink
WIS-ProMAXX Pipe Cutter_Factsheet
WIS-ProMAXX Hydraulic Spear-Factsheet
ProLATCH N_APAC_Australia Performance Bulletin
ProLATCH N_APAC_W Australia Performance Bulletin
CutPull_APAC_Indonesia Performance Bulletin
PullMaster_ESSA_N Sea Performance Bulletin
ProLATCH Subsea PA_Japan_APAC Performance Bulletin
PullMaster Hydraulic Pulling Factsheet
CutMaster X3_PipeCutter Factsheet
Well Abandonment Brochure

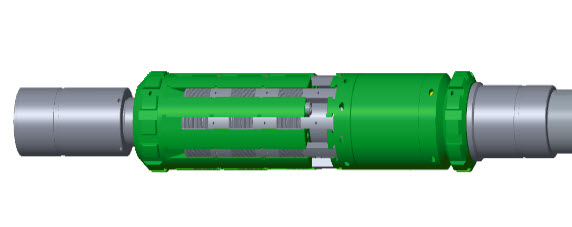

PullMaster Anchor

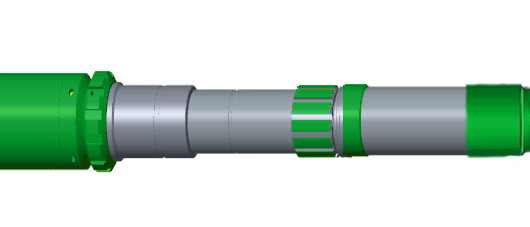

PullMaster Jack
Benefits
  • Improves operational flexibility by offering an alternative to pilot milling casing in slot recovery or redrill operations
  • Enhances environmental and HSE quality by eliminating swarf generation
  • Reduces rig time compared with casing milling operations

Features

Anchoring of section sets inside

Hydraulically actuated pulling section

Compatible with any mechanical engagement
tool for engaging the fish
for pulling

Hydraulic set-and-release anchor section

1,200,000-lbf pulling capacity

Not limited to workstring limitations

Used with conventional fishing jarring BHAs
